Router and firewall monitoring

Marcin Matuszewski
  • Updated

Configure SNMP monitoring on the selected device in nVision.

If you do not see the selected branch in the SNMP browser in nVision, it will be necessary to compile the MIB file downloaded from the manufacturer’s website.

Fortigate



Fortigate devices store data in the branch:

.1.3.6.1.4.1.12356

Sources:

SonicWall



SonicWall devices store data in the branch:

.1.3.6.1.4.1.8741

Sources:

Examples:

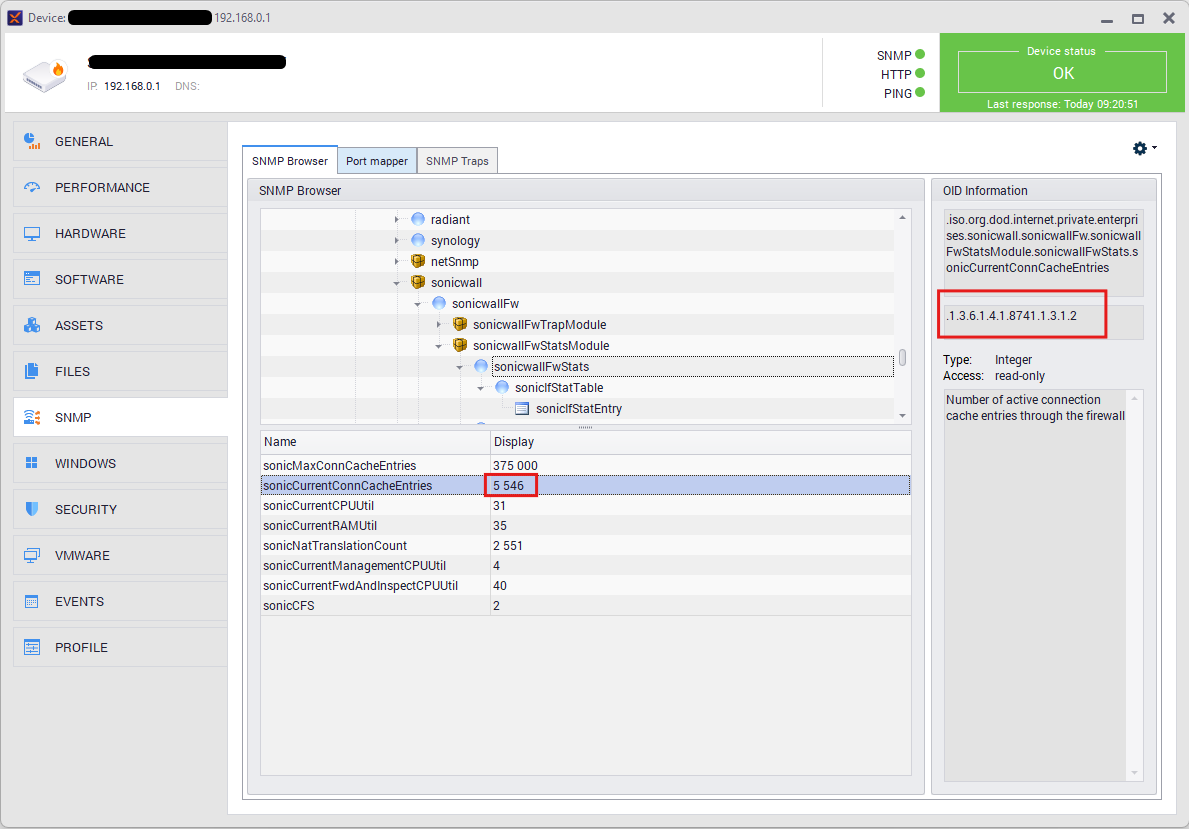

  • 1.3.6.1.4.1.8741.1.3.1.2 - Open TCP/IP sessions count

  • 1.3.6.1.4.1.8741.1.3.1.3 - CPU load (%)

  • 1.3.6.1.4.1.8741.1.3.1.4 - RAM load (%)

To add interface traffic monitoring:

  1. Go to the General tab and click the link Configure network interface traffic monitoring:

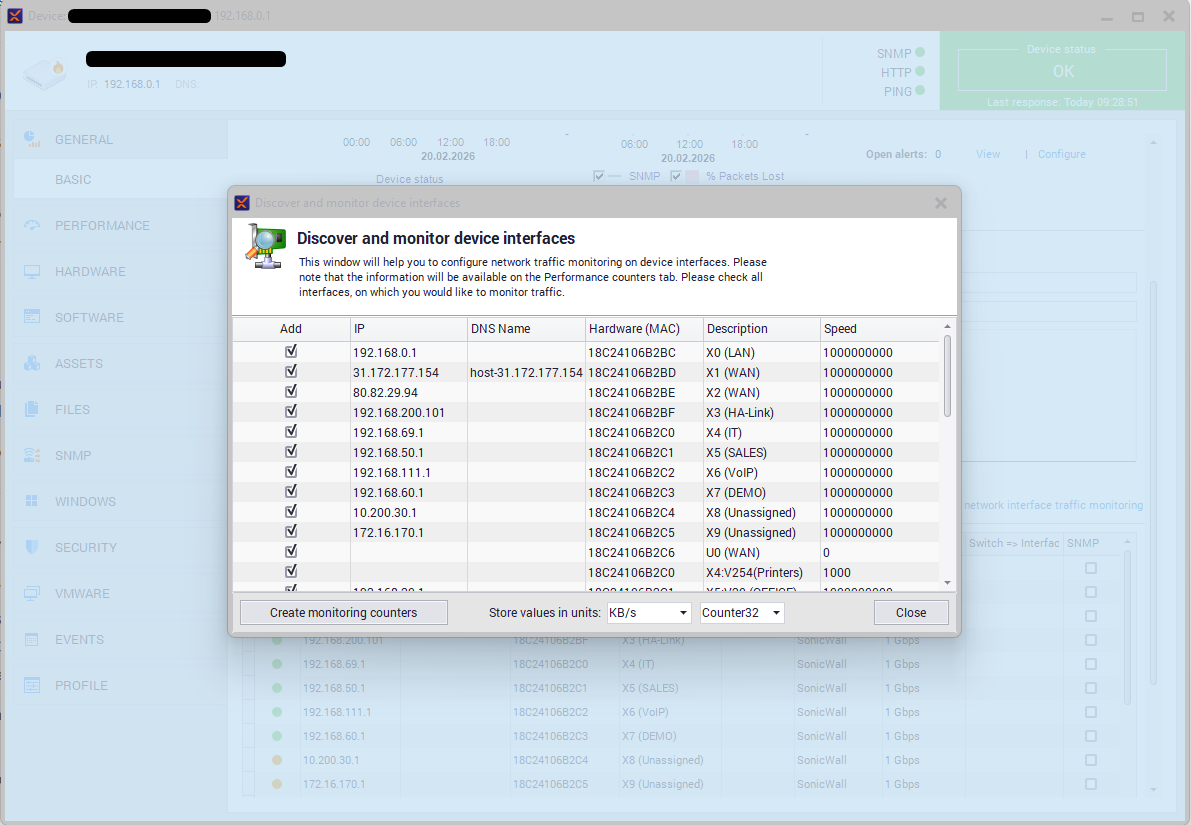

  2. In the new window, select the interfaces for which traffic should be monitored. Confirm by clicking Create counters.

  3. Verify the visibility of the added counters in the Performance \ Counters tab.
